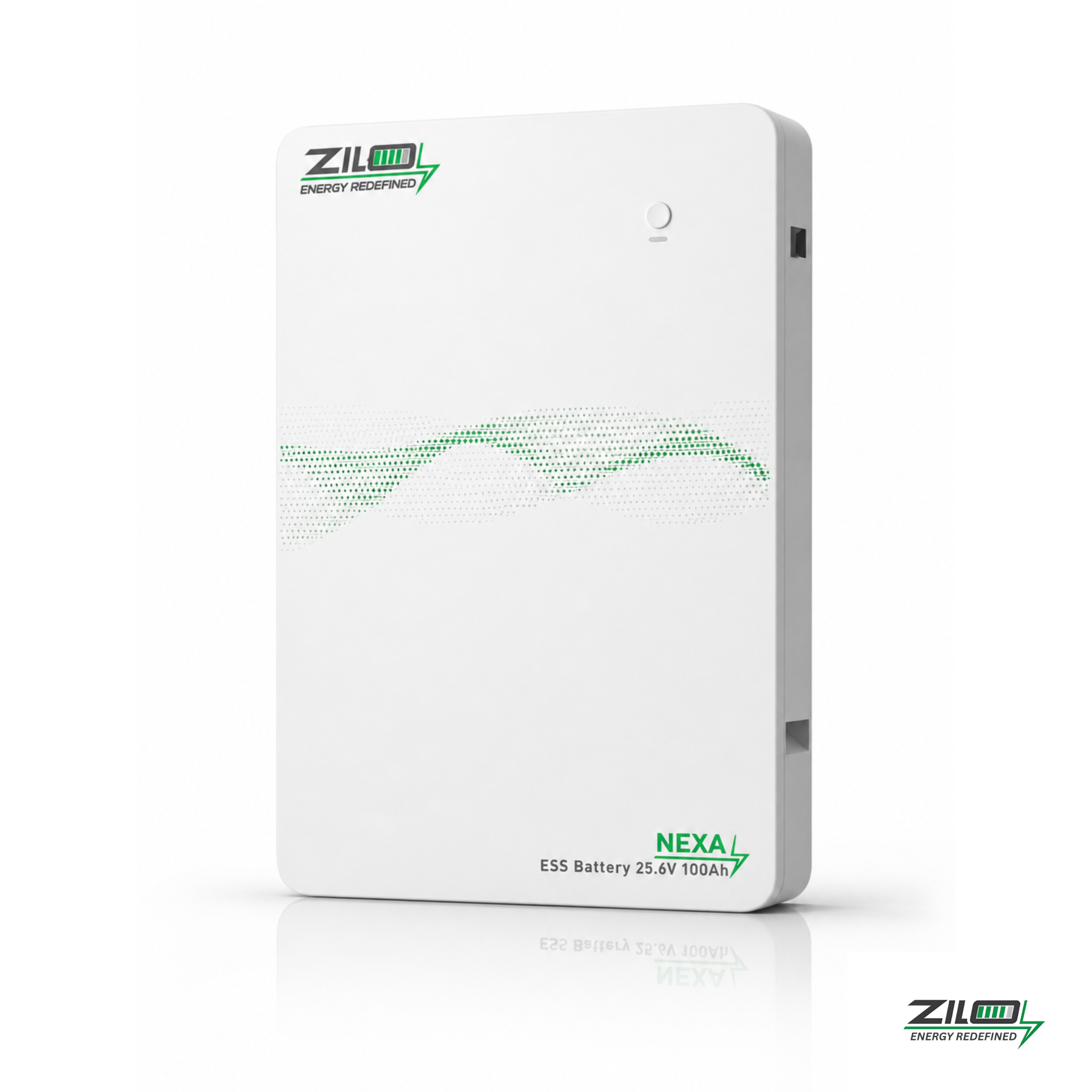

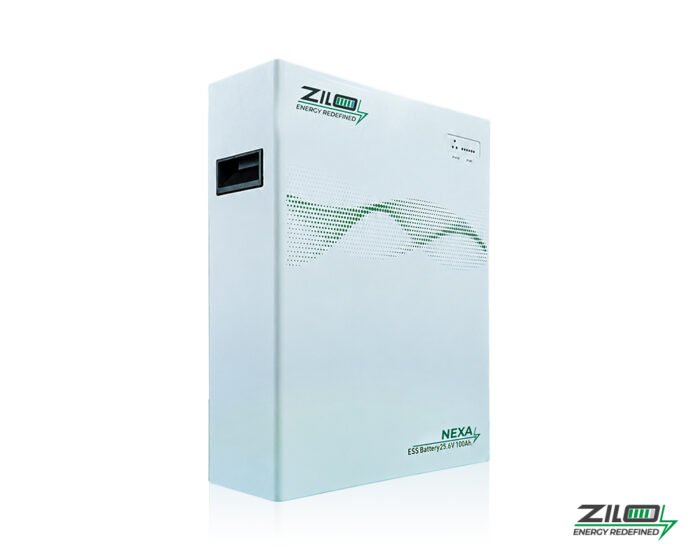

2.5 kWh Nexa Lithium Battery
- 5-year replacement warranty
- Tier-1 lithium cells (EVE / Great Power)
- Up to 6000 long-life cycles
- Extendable warranty up to 10 years
- 1C high discharge supports heavy loads
- 5C fast charging in about 2 hours
- Smart app monitoring and control
- Reliable performance in high temperatures
- Advanced explosion-proof safety design
- Compatible with most mainstream inverters
4
Items sold in last 3 minutes
68
People watching this product now!
Description
Performance & Specification
| Model | Nexa (2.56 kWh) |
| Display | LED Indicator |
| Installation | Floor Stand or Wall Mount |
| Dimension (H*D*W) |
502*187*242 mm
|
| Weight (KG) | 20 KG |
| Cell Technology | Lithium Iron Phosphate, LiFePO4 |
| Cooling Type | Natural |
| Cell String | 8S |
| Nominal Voltage | 25.6 V |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 2.56 kWh |
| Usable Energy | 2.304 kWh |
| Operating Voltage Range | 22.4 V – 28.8 V |
| Charge Current | 100A |
| Discharge Current | 100A |
| Expansion |
Max 2 units, Max 5.12 kWh
|

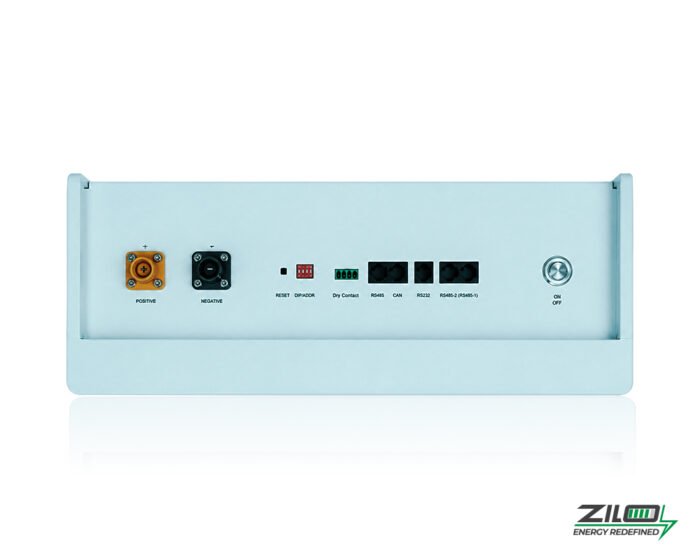

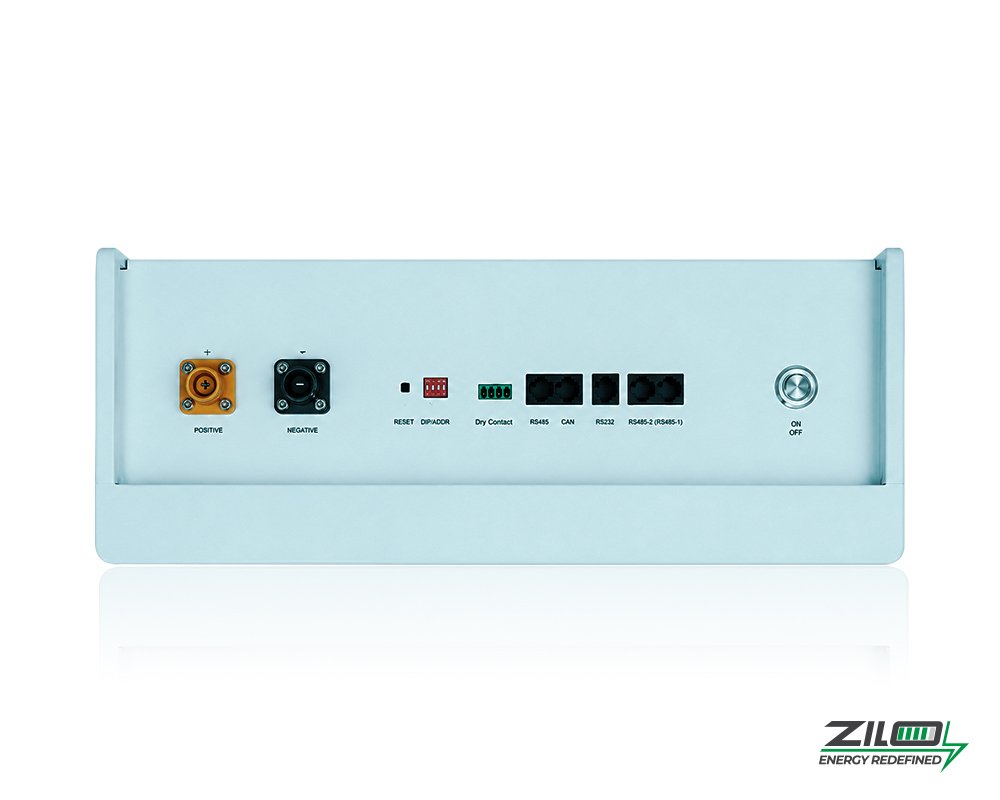

| Communication | CAN, RS485 |
| Cycle Life (26°C 0.5C) |
≥ 6000 times @90% DOD
|
| Operation Temperature | Charge: 0 ~ 55°C Discharge: -20°C ~ 55°C |
| Storage Temperature | -20 ~ +35°C |
| Storage Humidity | ≤95% RH, Non-condensation |
| Altitude (m) | ≤2000 m |
| IP Class | IP21 |
| Internal Resistance | <30mΩ |
2.5 kWh Nexa Battery – Data Sheet
